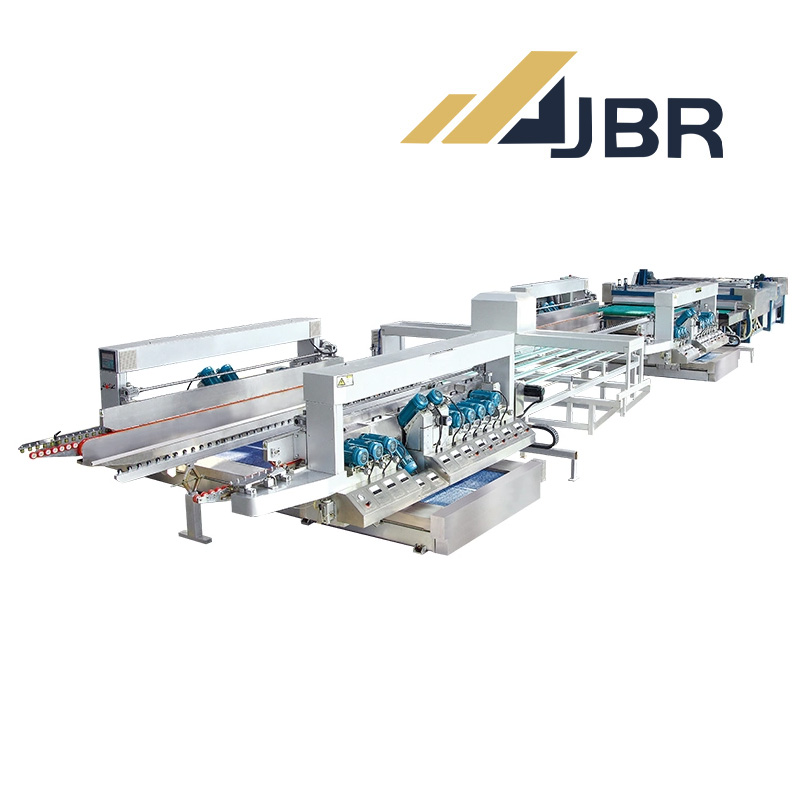

Intelligent Glass Double Edging Machine 20 Motors Window Double Edger
Product Description
Basic Info.
| Model NO. | FGE-DE | Diagonal Tolerance of Processing Glass | 0.5mm/M |
| Parallel Tolerance of Processing Glass | 0.1mm/M | Chamfer Tolerance | <=0.3mm/M |
| Chamfer Width | 1-3mm | Working Table Height | 870mm |
| Thickness | 3-25mm | Type | Glass Edging Machine |
| Structure | Horizontal | Control System | PLC |
| Glass Edging Machine Type | Glass Double Edging Machine | Grinding Head Number | 20 |
| Condition | New | Glass Washing Machine Type | Customization |
| Transport Package | Iron Frame & Shrink Film | Specification | 3800*4200*2000mm |
| Origin | China | HS Code | 8464201 |
| Production Capacity | 20sets/Month |
Intelligent Glass double edging machine 3-25mm thickness glass pencil double edge 20 Motors window double edger
1. DIFFERENT SIZE FOR OPTION
| MODEL | FGE-DE2015 | FGE-DE2520 | FGE-DE3025 | FGE-DE4225 | FGE-DE5030 | FGE-DE6030 |
| Maximum glass processing size |
2000*1500mm | 2500*2000mm | 3000*2500mm | 4200*2500mm | 5000*3000mm | 6000*3000mm |
| Minimum glass processing size |
300*300mm | 350*350mm | 350*350mm | 400*400mm | 400*400mm | 400*400mm |
2.TECHNICAL INFORMATION:
| Glass processing thickness | 3-19mm |
| Glass Processing speed | 0-12m/min |
| Open and close speed | 0-15m/min |
| Diagonal tolerance of processing glass (mm) | (1m*1m) ±0.5mm/m |
| Parallel tolerance of processing glass(mm) | (1m*1m) ±0.1mm/m |
| Chamfer tolerance(mm) | <=0.3mm/m |
| Chamfer width(mm) | 1-3mm |
| Working table height | 870mm |
3.GRINDING WHEEL CONFIGURATION:

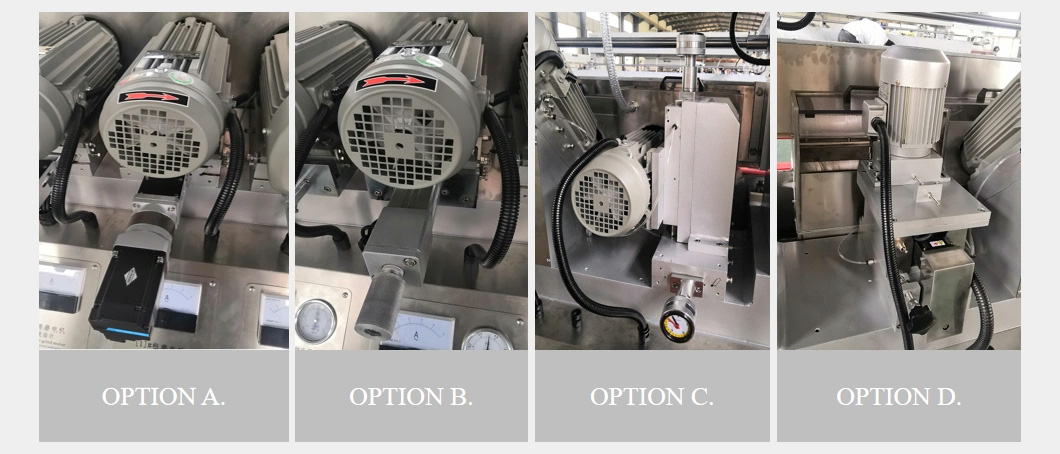

4.OPTION FUNCTION
OPTION A. Automatic compensation for diamond wheel
OPTION B. Automatic compensation and position locking for polishing wheel
OPTION C. Low-E coating removed device
OPTION D. Safety corner cutting device

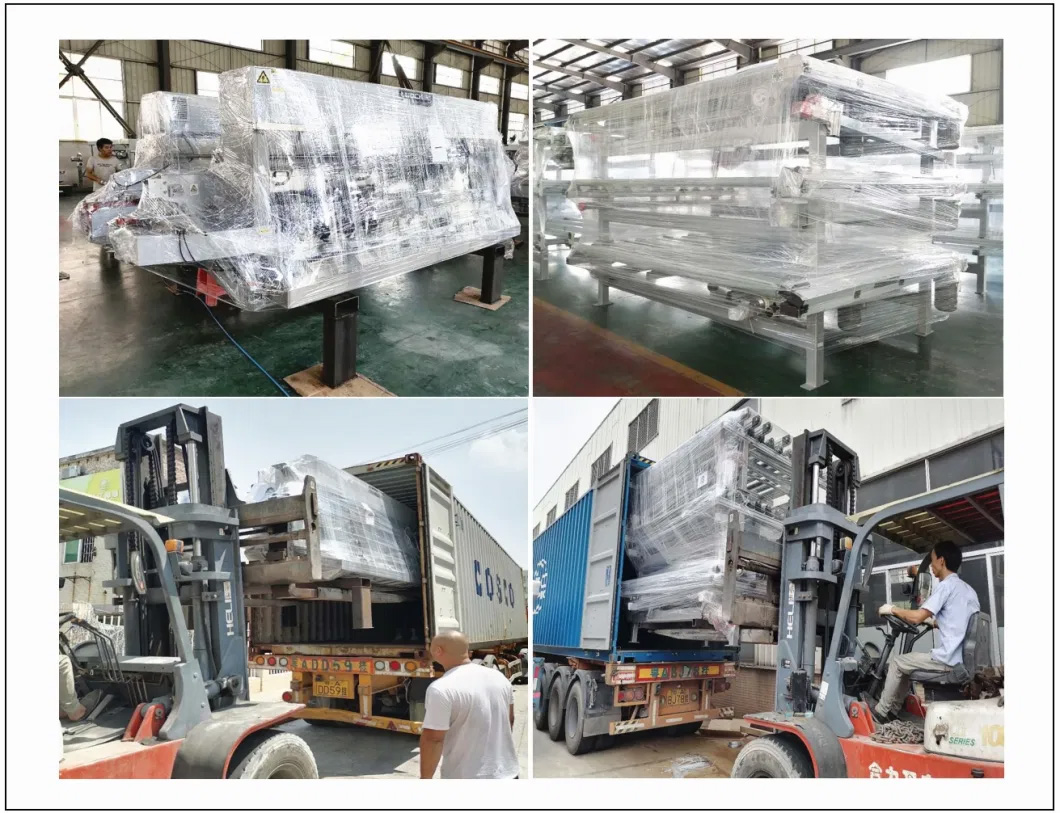

5. PACKING & LOADING PICTURES
Warmly welcome to visit, if there is any model you are interested, please feel free to contact.
Looking forward to cooperate with you and let's mutual benefit and win-win result.
